## Luigi Task Orchestrator Wednesday, October 14, 2015 Budapest BI Forum 2015
### Who's this guy? ![Devices](img/arash_horse_hat.jpg) * Data Engineer at Spotify * I write code most of the time, but not for the sake of it!!!!! * Arash Rouhani. [@Tarrasch](https://github.com/Tarrasch) on github. Authored [zsh-bd](https://github.com/Tarrasch/zsh-bd)
### Spoti-what? ![Devices](img/spotify-devices.jpg) We stream the right music for the right moment. 75M+ active users. 30M+ songs. $3bn paid to rightsholders.
### This talk 1. Introduction to luigi + declarative programming 2. Building up an open source community 3. Story time - fun anecdote
# Introduction to luigi
### What is luigi? [github.com/Spotify/luigi](https://github.com/Spotify/luigi) ![Luigi logo](img/luigi.png "luigi logo") A task orchestrator made in house at Spotify. Open sourced late 2012.
#### it even has spinoffs ;) [github.com/luiti/luiti](https://github.com/luiti/luiti) ![Luiti logo](img/luiti_rectangle_logo.png) [github.com/intentmedia/mario](https://github.com/intentmedia/mario) ![Mario logo](img/mario.png)

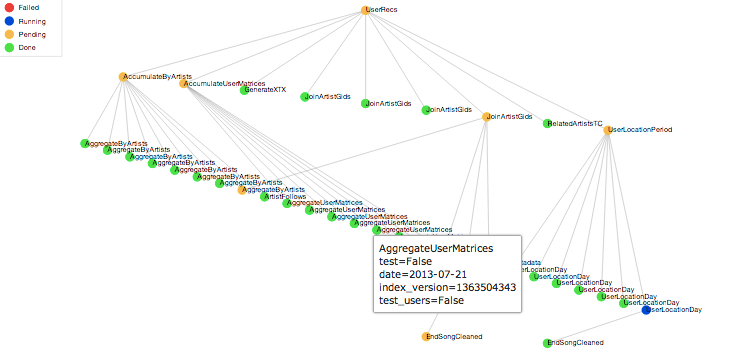

## A dependency graph ![Mario logo](img/dependency_graph.png)
## Task DSL It is very much like GNU Make. ```python class MyTask(luigi.Task): some_parameter = luigi.Parameter(default="hello") def complete(self): return True or False def requires(self): return [TaskA(), TaskB(param='yay')] def run(self): print self.some_parameter, 'world' ```
## Small example ```python import luigi class HelloWorldTask(luigi.Task): def run(self): with self.output().open('w') as fd: fd.write('Hello World') def output(self): return luigi.LocalTarget('hello.txt') ```
## Lets run it! ```bash $ luigi --module helloworld HelloWorldTask --local-scheduler ... INFO: Scheduled HelloWorldTask() (PENDING) ... INFO: ===== Luigi Execution Summary ===== Scheduled 1 tasks of which: * 1 ran successfully: - 1 HelloWorldTask() ===== Luigi Execution Summary ===== $ cat hello.txt Hello World ```
## And lets run it again! ```bash $ luigi --module helloworld HelloWorldTask --local-scheduler ... INFO: Scheduled HelloWorldTask() (DONE) ... INFO: ===== Luigi Execution Summary ===== Scheduled 1 tasks of which: * 1 present dependencies were encountered: - 1 HelloWorldTask() Did not run any tasks ===== Luigi Execution Summary ===== ```
#### Does It feel declarative? Kind of. Despite that class statements in python are *statements*. We've made using luigi feel declarative.
This feels like a statement in python, not a declaration ```python class MyNewClass(object): sys.exit(1) ```
So how do one achieve this declarative feel? ```python class MyTask(luigi.Task): def run(self): pass def complete(self): pass def requires(self): pass ``` ``` bash $ luigi --module my_tasks MyTask ``` We need to bring out our Python-fu!
By having a registry! ```python # from the luigi library source code: @six.add_metaclass(Register) class Task(object): ... class Register(abc.ABCMeta): def __new__(metacls, classname, bases, classdict): """ Is called when a Task class is "declared". """ cls = super(Register, metacls).__new__(...) metacls._reg.append(cls) return cls ```
# Building an Open Source Community

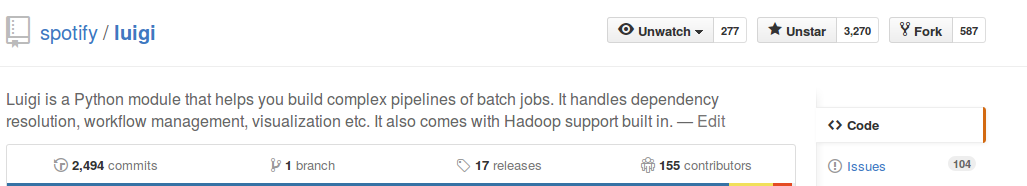

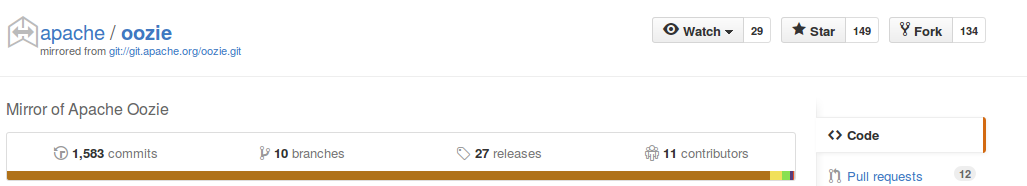

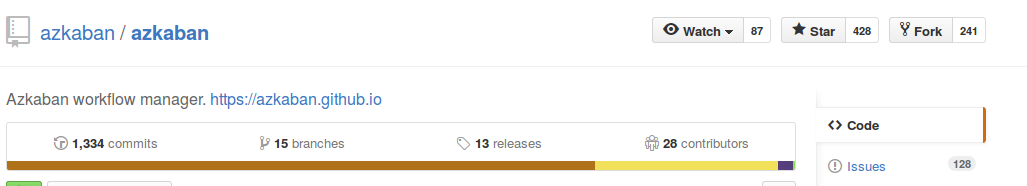

#### Current (1st oct) gh pages for orchestrators ![](img/gh_luigi.png) ![](img/gh_azkaban.png) ![](img/gh_oozie.png)
## Observations * Clearly, community is not built by just being an apache project. * However, it flocks users and enterprise support! * Both Cloudera and Hortonworks support Oozie and include it in their Hadoop distribution. In Spotify, we've debated if we want to push Spotify Luigi to become Apache Luigi or not.
I guess that Luigi's community success comes from: * Spotify being responsive in the email group and github PRs and issues * It being hosted on GitHub * The problem of orchestration is wide * Luigi takes about 10 minutes to just try out. * API is very intuitive.
## Significant contributions by non-Spotifiers * 100% of the Web UI * Most of the scheduling logic * Edge-case handling in the worker * Many storage and compute engine integrations * AWS, GCP, Redshift, Elastic Search, SqlAlchemy etc.
# The Thanksgiving bug story time!

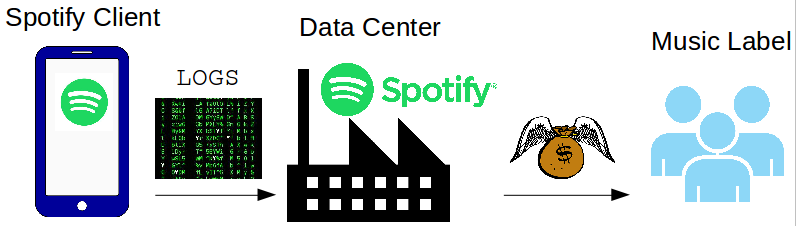

### Reporting to labels at Spotify When you listen to music on Spotify, we report this to labels and pay them. ![Money overview](img/overview.png)
### How client logs are stored in Spotify When you listen to songs we save EndSong messages. ```{bash} $ hadoop fs -ls /logs/EndSong/2015-08-27/06/ /cleaned/endsong/2015-08-27/06/part-00000.avro /cleaned/endsong/2015-08-27/06/part-00001.avro /cleaned/endsong/2015-08-27/06/part-00002.avro ... ``` The files are split into multiple avro files.
### The `mv` command in unix What does this do? ```{bash} $ mkdir my_directcry $ mv my_file.txt my_directory ```
### What luigi did ```{bash} $ hadoop -jar mapreduce.jar -Poutput=output-luigi-tmp-123456 $ hadoop fs -mv output-luigi-tmp-123456 output ``` Now what can go wrong? ;)
### An awesome fix I did! [spotify/luigi#522](https://github.com/spotify/luigi/pull/522) ```{bash} $ hadoop -jar mapreduce.jar -Poutput=output-luigi-tmp-123456 $ hadoop fs -mkdir output $ hadoop fs -mv output-luigi-tmp-123456/* output ``` The trick is that `hadoop fs -mkdir output` will crash if folder exist. That's good, so no other thread can create it. But...
Just a week or so after thanksgiving, a analyst came down to the Data Engineers. > Analyst: Hey, a label reported that they received only 80% of the expected > revenue for last Thursday. We think there's a bug in your systems. If > labels get pissed, we will all lose our jobs! > > Engineer: Well duuh, it was Thanksgiving last Thursday. Of course people listen > to less music! And you're supposed to be the guys working with user behaviors.
### No animals were harmed The "fix" was reverted in [spotify/luigi#557], and a proper fix was implemented in [spotify/luigi#605]. We used a new file system primitive with *rename-dont-move* semantics, also by Spotify in [spotify/snakebite#128]. [spotify/luigi#557]: https://github.com/spotify/luigi/pull/557 [spotify/luigi#605]: https://github.com/spotify/luigi/pull/605 [spotify/snakebite#128]: https://github.com/spotify/snakebite/pull/128
### Thanks for listening [@Tarrasch](https://github.com/Tarrasch) on github http://tarrasch.github.io/luigi-budapest-bi-oct-2015 https://github.com/Tarrasch/luigi-budapest-bi-oct-2015
